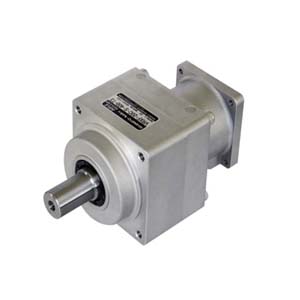

Shimpo VRXF-5C-19DC19
- Superior torque transmission through a new design
- Compatibility with all servo motors
- Noise reduction achieved with new helical gears
- Capable of handling high input speeds up to 6000 rpm
- High efficiency and leakage-free operation
Shimpo VRXF-5C-19DC19 Technical Specifications:
| W Number (kw) | – | |
| Backlash(arc.min.) | less than 15; 5 & 3 | |
| efficiency (%) | 90 | |
| Ratio | 5 | |
| Noise level [db] | less than 72 | |
| Rated Output Speed(r.p.m.) | 3000 | |
| Torsional Regidity(Nm/arc.min.) | 3 | |
Product Specification of VRXF-5C-19DC19 :
Experience enhanced torque transmission with our new gear design featuring a fully-complementing roller bearing structure. It ensures maximum efficiency and reliability, allowing for increased torque capabilities. With a remarkable maximum input speed of 6,000 spm, it effortlessly handles high-performance applications.
Our high-performance grease further enhances efficiency, ensuring optimal performance. Choose from three available backlash levels to suit your specific requirements. Our gearbox is compatible with all types of servomotors, thanks to the use of adaptors.
Furthermore, you’ll appreciate its maintenance-free nature, as grease replacement is not required throughout the product’s lifetime. It can be easily installed at any desired angle without the worry of leakage, providing you with versatility and peace of mind. Trust our gearbox for exceptional torque transmission and reliable performance in your applications.
