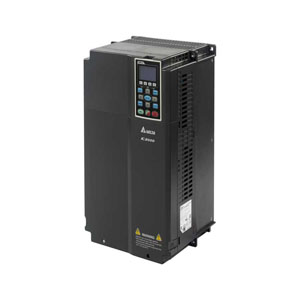

Delta VFD022C43A-21
The Delta High Performance Vector Control Drive, offering:
- Multi-column display for clear drive status monitoring
- Built-in Intelligent PLC Functions for enhanced control capabilities
- Advanced network functions for seamless connectivity
- Precise position and speed control with FOC+PG Mode for accurate operation
Delta VFD022C43A-21 Technical Specifications:
| KW | 2.2KW | |
| Output Current | 6Amp. | |
| PID Function | Built-in | |
| CANopen | Optional | |
| DeviceNet | Optional | |
| EtherCAT | Optional | |
| KEYPAD | Built in Detachable | |
| HP | 3HP | |
| Braking Chopper | Built in up to 30kW/40HP | |
| PLC Function | Built-in PLC (10k steps) | |
| PROFIBUS DP | Optional | |
| Modbus TCP | Optional | |
| BACnet | NA | |
| Control Mode | IMVF, IMVF+PG, IM/PM SVC, IMFOC+PG, PMFOC+PG, IMFOC Sensorless, PM Sensorless, IPM Sensorless, SynRM Sensorless, IM TQCPG, PM TQCPG, IM TQC Sensorless |
|
| Input Supply | 3-Phase, 415V | |
| Output Frequency (HZ) | 0 to 599.00 Hz | |
| MODBUS COM | Built-in | |
| PROFINET | Optional | |
| EtherNet/IP | Optional | |
| PG Close Loop | Built in (With One High speed input capacity 33 khz) | |
Product Specification of VFD022C43A-21 :
- Heavy-duty overload capability for reliable operation.
- Sensorless vector control of IM / PM / SynRM motors for precise control.
- IP55 fans, efficient heat sink, and Class 3C3 conformal PCB coating for durability.
- Built-in PLC with RTC function and remote I/O integration for enhanced functionality.
- Removable LCD keypad with text panels editor function for convenient operation.
- Supports encoder/resolver feedback for accurate closed-loop control.
- Built-in braking chopper up to 40Hp for efficient braking.
- Advanced control features including positioning control, master/slave torque control, and more.
- Optional communication cards available for flexible network integration.
