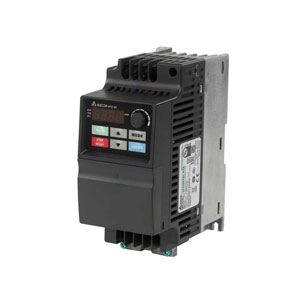

Delta VFD004EL21W-1
Sensorless vector control compact drive:
- 150% / 60 secs overload capability
- Single/multi-pump control capability
- Built-in PID feedback control for accurate control
- Overload, over-voltage, and over-current stall prevention features
Delta VFD004EL21W-1 Technical Specifications:
| KW | 0.4KW | |
| Output Current | 2.5Amp. | |
| PID Function | Built in | |
| CANopen | NA | |
| DeviceNet | NA | |
| EtherCAT | NA | |
| KEYPAD | Built-in Non Detachable | |
| HP | 0.5HP | |
| Braking Chopper | NA | |
| PLC Function | NA | |
| PROFIBUS DP | NA | |
| Modbus TCP | NA | |
| BACnet | Optional | |
| Control Mode | V/F, SVC | |
| Input Supply | 1-Phase, 230V | |
| Output Frequency (HZ) | 0.1 to 400.00 Hz | |
| MODBUS COM | Built in | |
| PROFINET | NA | |
| EtherNet/IP | NA | |
| PG Close Loop | NA | |
Product Specification of VFD004EL21W-1:
- Designed to be compact, simple, and durable.
- Offers multiple speed operation and control modes: digital panel, external terminal, and Modbus communication.
- Enables multi-pump control and includes PID control functionality.
- Supports the operation of one drive with two motors in parallel and features a Time Out Detection function.
- Provides a high overload capacity, allowing for 150% rated current for 1 minute.
- Holds certifications including CE, RoHS, and GB12668.3.
